4 Stroke 1.6kw Outboard Motor Outboard Fishing Boat Motor Engine With Air Cooling for Inflatable Boat Kayak Canoe Sailboat

Exclusive Memory Store

Warm reminder: The exclusive sales rights of this product belong to the Exclusive Memory Store. Other products that use the same pictures as our store are all counterfeit and pirated products. Buyers are advised to recognize the Exclusive Memory Store. Our products have quality and a 3-year after-sales guarantee, and we are absolutely responsible to consumers! Please be cautious when placing orders for other pirated and plagiarized products!

Description

Do you like fishing on the river? Do you want to go boating with your family? But are you worried about the manual boating is too tired? With our fishing boat engine, you don't have to worry about this problem. This engine has sufficient power and can drive the boat at a fast speed. The four-stroke 4 HP fishing boat engine is suitable for all kinds of small boats of 7.5-16.4ft, such as rubber boats, fishing boats, wooden boats, etc.

Application

The fishing boat engine is suitable for all kinds of small boats of 7.5-16.4ft, such as rubber boats, fishing boats, wooden boats, etc. You can use it for fishing on the river, water farming, river rescue, water excursions, flood relief, etc.

Specification

Bracket: Material: Aluminium Rod, Plastisol Propeller

              Color: Black and Silver

              Drive Rod Length: 56cm/22.05inch

              Small Bracket Size: 19*8cm/7.48*3.15inch

              Control Lever Length: 53cm/20.87inch

              Package Size: 94*19*16cm/37.01*7.48*6.30inch

              Net Weight: 4.7kg/10.36lbs

              Gross Weight: 4.95kg/10.91lbs

Engine: Color: Orange, Black, Silver

             Size: 26*22.5*29cm/10.24*8.86*11.42inch

             Engine Model: Four-stroke 144F

             Displacement: 53.2cc

             Air-cooling Mode: Forced Air-cooling

             Gasoline Volume: 1.2L /0.32gal

             Starting Method: Hand-pull Start

             Speed: 15km/h

             Steering: Handle Steering

             Fuel Consumption: 1-1.2 Hours/ One Tank of Gasoline

             Fuel Type: Gasoline

             Mounting Type: Engine

             Package Size:33.5*29.5*23.5cm/13.2*11.6*9.2inch

             Net Weight: 5.8kg/12.8lbs

             Gross Weight: 6kg/13.2lbs

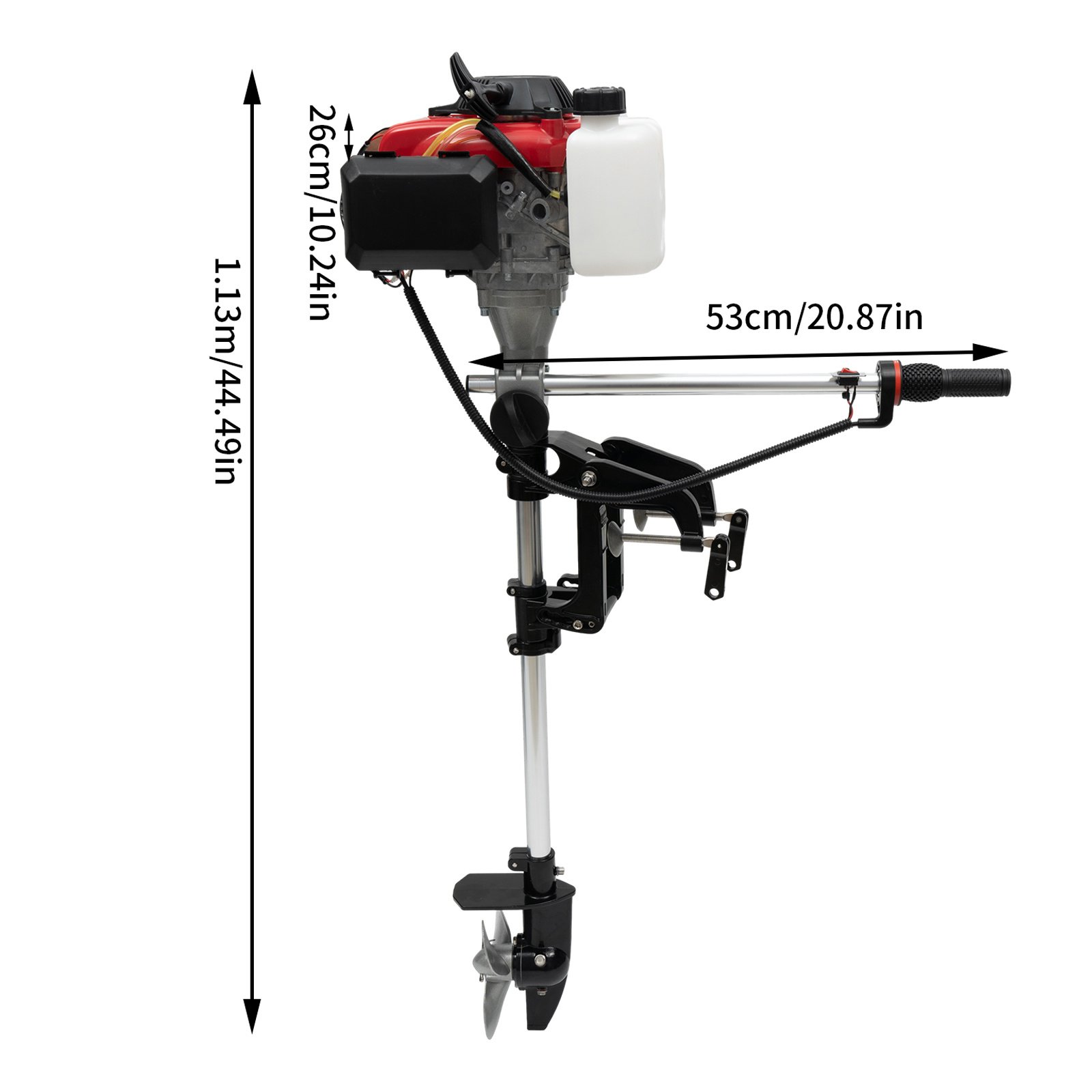

Size After Installation: 26*53*113cm/10.24*20.87*44.49inch

Key Features

Great Durability: This bracket of the outboard engine is made of sturdy and durable aluminum and plastisol. And the engine is covered by a plastic housing, which is waterproof. So it has a long service life, and you can use it with confidence.

Reliable and Safe: It uses 4-stroke power and air-cooling technology to improve the reliability and safety of the entire machine. It even allows for smooth and safe steering.

Speed Adjustable: There is a speed adjustment handle on this engine's control lever. The speed can be controlled by rotating the handle.

Powerful Engine: The engine is a 4-stroke 4 HP engine, so its power is very strong. Its speed can reach 15km/h. So the superpower engine makes it very time-saving and energy-saving. You can travel quickly through the river with it.

Convenient Control Lever: This engine has a lever to control the direction within 360° and a handle on the lever to control the speed. It is convenient to control the running speed by adjusting the handle as well as controlling the running direction by adjusting the lever.

Easy to Carry: The weight of this engine is only 5.8kg/12.8lbs. The weight of the bracket is 4.7kg/10.36lbs. So even if you put them together, they won't be very heavy. You can easily take the outboard engine outdoors to go fishing on the river.

Large Capacity Fuel Tank: This engine is equipped with a 1.2L /0.32gal built-in fuel tank. The built-in fuel tank can make the boat move at high speed for about 2 hours with one filling. So you don't need to refill it frequently.

Easy to Use: This engine has a hand-pull start. Pull the engine's switch and then open the handle speed switch, then the boat will move on the river. So it is very simple and convenient for you to use.

Wide Applications: There are many uses for this outboard engine. You can use it for fishing on the river, water farming, river rescue, water excursions, flood relief, etc.

Guaranteed Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Clamping Bolt: The fishing boat engine has a clamping bolt on the rod. It clamps the engine firmly on the boat. It is also very easy to install.

Water Baffle: There is a water baffle above the propeller to prevent water from splashing onto the boat. So you don't have to worry about getting yourself wet with the splash.

Anti-slip Throttle Handle: The throttle handle of this product is designed with an irregular shape, which is more non-slip, facilitating your daily use.

Heat Dissipation Housing: There are many small holes in the engine's housing to help dissipate heat and prevent the engine from burning out after prolonged use. These heat dissipation holes extend the life of the engine.

Three-Blade Plastisol Propeller: This bracket uses a three-blade propeller to replace the traditional manual boat propeller. This propeller has a fast speed and allows the boat to be driven quickly.

Installation Instruction

Installation Warning: Most boats are approved for a maximum power rating, which is shown on the boat's nameplate. Do not configure your boat with an outboard that exceeds this limit.

Installation position: The center of the boat's bottom

Outboard installation instructions:

1. Select the outboard engine with corresponding specification ( HP ) according to the size of the boat, and determine the shaft length of the boat engine by the height of the transom.

2. After hanging the outboard on the transom, lock it with clamping bolts.

3. After the outboard is fixed, you need to pay attention to the water level to be flooded to the best water level to ensure the cooling water pump cools the engine smoothly while making the outboard propulsion system play the best thrust performance.

Package Included

Engine Package:

1* Engine

1* Measuring Cup

1* Chinese Instruction

Other Accessories for Assembly

Bracket Package:

1* Drive Rod

1* Small Bracket

1* Control Lever

1* Big Wrench

1* Metal Stick

1* Screwdriver

3* Small Wrenches

4* Screws

1* English Instruction

Notes

1. The four-stroke 4 HP fishing boat engine is suitable for all kinds of small boats of 7.5-16.4ft, such as rubber boats, fishing boats, wooden boats, etc.

2. The built-in fuel tank can be filled once for about 2 hours at high speed, and the driving speed is about 10~15km/h. The driving distance is different due to different boat types and load water conditions.

3. Four-stroke fuel uses gasoline over 92#. The oil should be added separately to the internal oil tank.

4. Although this model hasn't a gear set, the throttle can be infinitely adjusted.

5. Before using the new machine, you must first add four-stroke special oil. And, the oil is added to the oil volume cup 200ml. Too much or too little oil will seriously affect the engine.

6. The new machine needs to change the oil once in 6 hours, and then change the oil once in 8 hours.

7. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
