SVBONY 30mm f/4 Compact Ultra-Mini Guide Scope for SV305 ZWO Auto Guiding Cameras SV165

https://www.youtube.com/watch?v=8B8y5wxBEm8
Author:AstroCreation

SV165 30mm f/4 Ultra-Mini Guide Scope

Focal Length: 120mm
1.25-inch & M42*0.75
Helical Focus Stroke: 45mm

Focal Length: 120mm

The objective lens diameter is 30mm. The focal length of the scope is 120mm.
F4 aperture optics provides a wide field of view which will help to quickly find the target when performing astronomical observations.

1.25-inch & M42*0.75

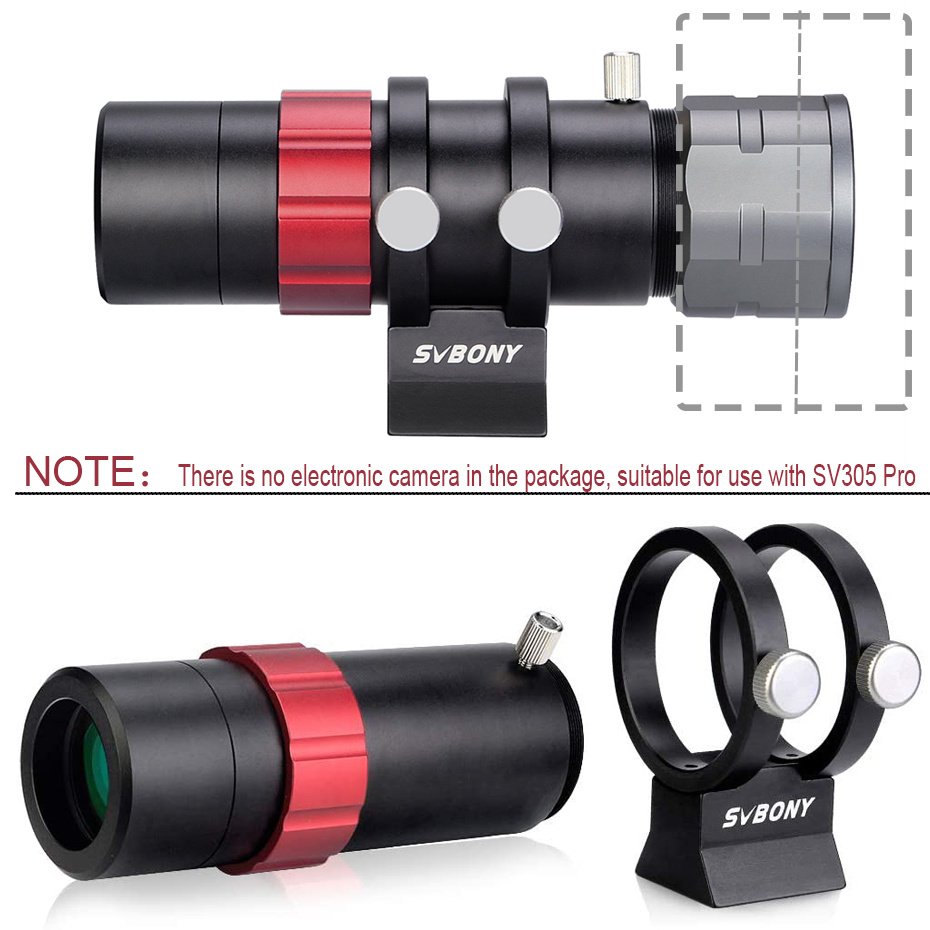

The 1.25-inch interface and M42*0.75 male threads allow to connect with SVbony SV305, ZWO, Orion, QYH and other auto guiding cameras.

Fully Broadband Multi-Coated

Fully broadband multi-coated optics means the types of coating on all optical surfaces throughout the entire scope. And fully broadband multi-coated optics decreases surface reflectivity therefore allows greater optical through-put across the entire visible light spectrum, increases the light transmission and delivers bright, clear and high-contrast images.

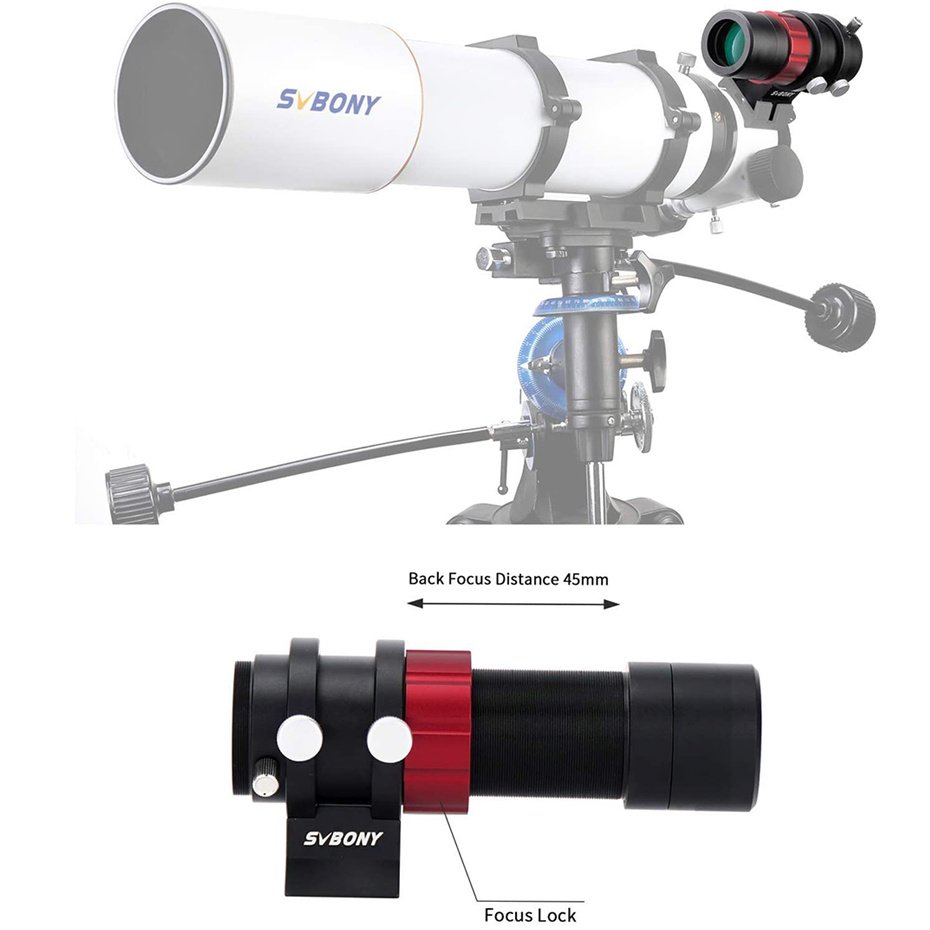

Helical Focus Stroke: 45mm

The 45mm focusing stroke ensures enough focusing range for observing and focus lock ensures a stable focusing. The built-in helical focuser is better for precise focusing of potential guide stars.

Ultra-mini Optics

The guide scope is ultra mini and light, and won't weight your telescope and mount much.

Product Details

High-quality Craftsmanship
High-level CNC machined & Sandblasting Oxidation

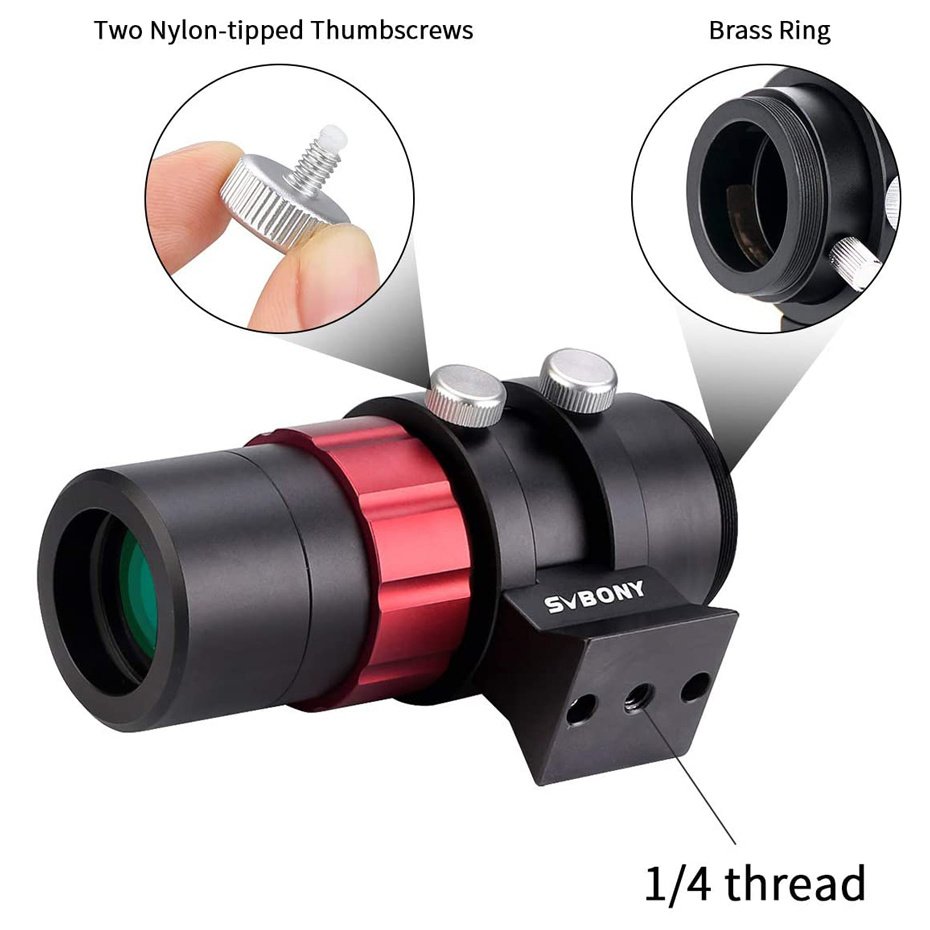

Nylon-tip Screws
No scratches left on the scope
UNC 1/4-20 Screw Hole

Focusing the Guide Scope

Rotate the lock ring to loose
Rotate the objective part to focus
Rotate the lock ring to lock

Specification:

1.Brand: SVBONY
2.Model: SV165
3.Lens Diameter: 30 mm
4.Focal Length: 120 mm
5.Coated: FMC
6.Support interface: 1.25in Or M42*0.75 mount Camera
7.Focuser Type: Front Part Focuser
8.Back Focus: Adjustable
9.Dovetail includes 1/4″screw hole
10.Tube Travel: 45 mm
11.Surface technology: Sandblasting oxidation
12.Material: Aluminum Profile
13.Net Weight: 342g / 0.75lb / 12.06oz

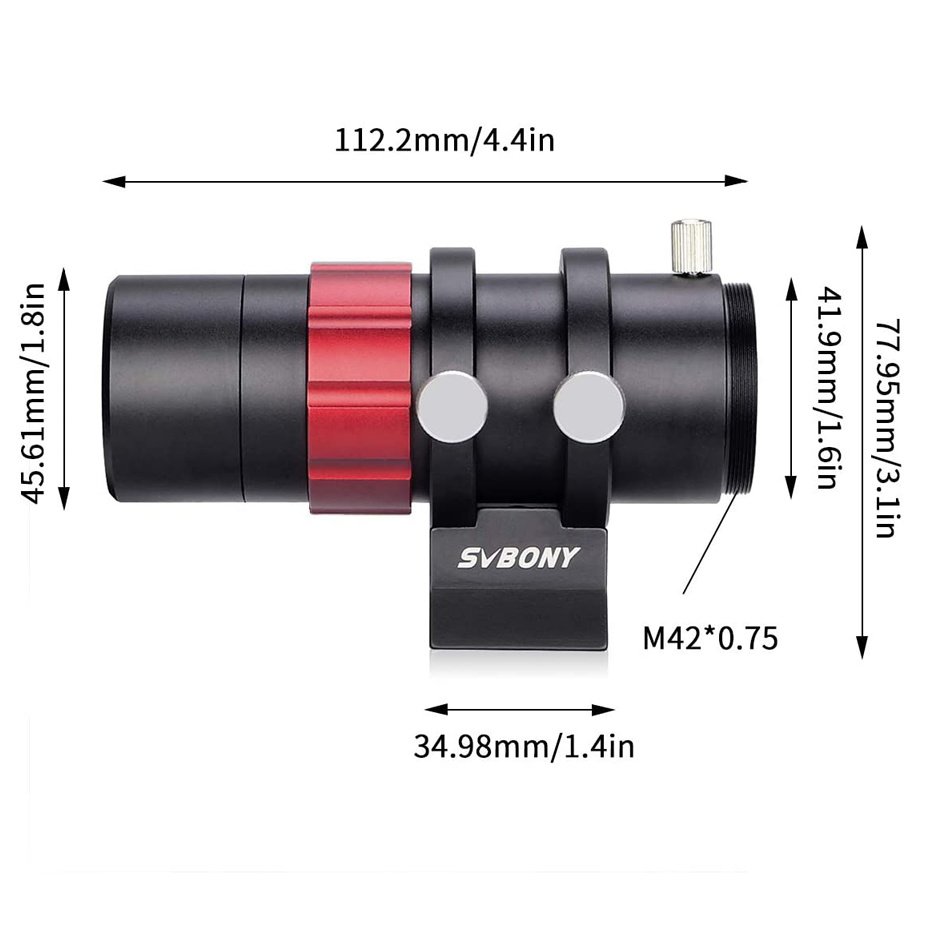

14.Body Size: 92x56x78mm / 3.62x2.20x3.07 in

Package Details:

1* SVBONY 30mm f/4 mini Guide Scope
1* Two-Ring bracket with a dovetail
1* Two Nylon-tipped thumbscrews
1* One Screws Tool
1* One Dust Cover
1* One Lens Cover

Buyer's Show

Imaging telescopes or lenses: AstroTech AT115EDT Scope
Imaging cameras: ZWO 294 MM PRO Imaging Camera
Mounts: Celestron AVX Mount
Guiding telescopes or lenses: SvBony 30 mm f/4 guidescope guide scope
Guiding cameras: asi zwo 120 MC-S Guide Camera
Focal reducers: Astro Tech 0.8x Reducer/Flattener AT0.8x
Software: NINA,PhD2,PixInsight,CPWI
Filters: Chroma O3 3nm filter · Chroma Ha 3nm 31mm filter · Chroma S2 filter
Accessory: ZWO EFW 2" Wheel · Thousand Oaks Dew Controller Heater · ZWO EAF Focuser
